Universal Nintendo N64 RGB Kit with Integrated 3.3v Voltage Regulator
Universal Nintendo N64 RGB Kit with Integrated 3.3v Voltage Regulator - Image 2
Universal Nintendo N64 RGB Kit with Integrated 3.3v Voltage Regulator - Image 3

Universal Nintendo N64 RGB Kit with Integrated 3.3v Voltage Regulator

$5.00 – $59.99

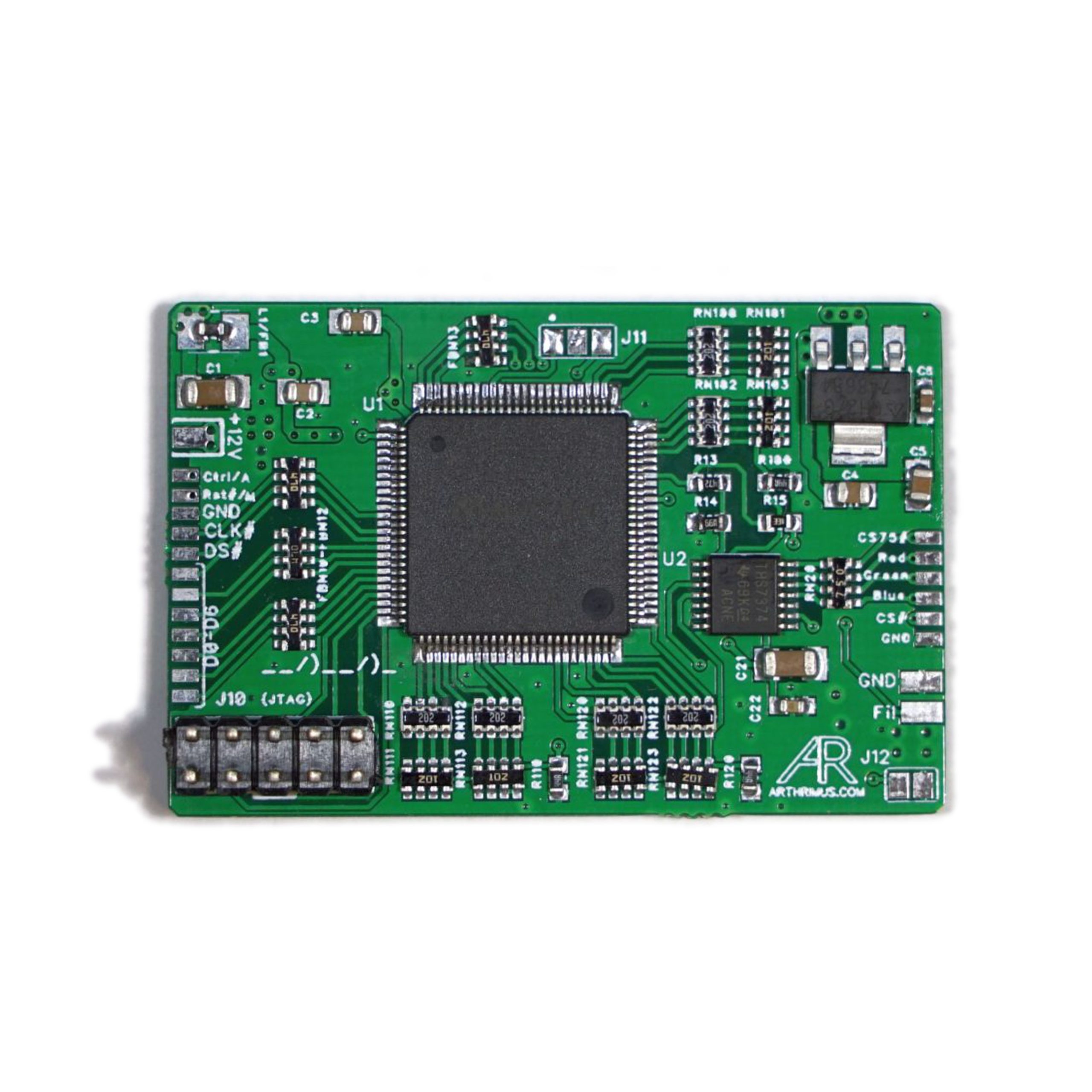

N64RGBv1 Universal RGB Board with Integrated 3.3v Voltage Regulator



Borti4938’s N64RGBv1 universal RGB board offers RGB output from the AV Multi out port, as well as the Deblur function that increases the sharpness of most N64 games. It also has IGR (in game routines) functionality enabled which allows you to reset the console and manually turn deblur on and off from the controller in controller port 1 using button combinations. This version of the mod also integrates Borti’s 3.3v Voltage Regulator circuit into it’s design. The N64’s stock 3.3v rail is very noisy, with high frequency noise produced by the audio circuit and controller inputs leaking into the power rail. As a result this produces unwanted noise in the RGB video output on any board that doesn’t have a separate 3.3v power regulator installed. This version of the RGB board eliminates this problem by integrating a dedicated 3.3v Voltage Regulator directly on board for clean power input and noise free video output.

SKU: N64004 Categories: Hardware Upgrades, N64 Hardware Upgrades Tags: Borti4938, Deblur, IGR, In Game Routines, N64, Tim Worthington, Universal RGB, Viletim
Clear
*
Share This :
  • Description
  • Additional information
  • Reviews (3)

Description

N64RGBv1 Universal RGB Board with Integrated 3.3v Voltage Regulator and Installation Service.



Borti4938’s N64RGBv1 universal RGB board offers RGB output from the AV Multi out port, as well as the Deblur function that increases the sharpness of most N64 games. It also has IGR (in game routines) functionality enabled which allows you to reset the console and manually turn deblur on and off from the controller in controller port 1 using button combinations. This version of the kit also integrates Borti’s 3.3v Voltage Regulator circuit into it’s design. The N64’s stock 3.3v rail is very noisy, with high frequency noise produced by the audio circuit and controller inputs leaking into the power rail. As a result this produces unwanted noise in the RGB video output on any board that doesn’t have a separate 3.3v power regulator installed. This version of the RGB kit eliminates this problem by integrating a dedicated 3.3v Voltage Regulator directly on board for clean power input and noise free video output.

For an overview of N64 3.3v power issues and reference on how to install this version of the RGB kit I have this video on the topic.

IGR button combinations:



Reset Game: Hold Start+Z+R+A+B
Turn Deblur Off: Hold Start+Z+R+C-Left
Turn Deblur On: Hold Start+Z+R+C-Right
Turn 15bit Color on: Hold Start+Z+R+C-up

Turn 15bit Color off: Hold Start+Z+R+C-Down

Purchasing Options:

If you plan to install the kit yourself simply select Board Only in the drop down options. If you need a MAV-NUS adapter for your model of N64 you should also add the MAV-NUS Adapter Only option to your cart. If you wish to send your console in for installation service, please also add Optional Professional Installation to your cart and I will provide shipping instructions after checkout. If you would also like to have the capacitors replaced on your N64 motherboard, please also add the Optional Capacitor Replacement Service to your cart as well.


How this store works:

Processing time for orders is between 1 and 5 days. I assemble all of these boards by hand. When a product is listed in stock this means that I have all of the components to build the board, but it does not necessarily mean that the boards are already assembled. If I have boards ready at the time of your order then processing and shipping your item should only take 1 day. If I have to assemble one or more products in your order, processing and shipping could take up to 5 days. I appreciate your patience, I’m a one man show over here.

If you are sending an item in for professional installation service, my turnaround is usually between 2-5 days from the time I receive your shipment. This varies based on my workload at the time. Again, your patience is appreciated.


IMPORTANT SHIPPING INFORMATION

I have implemented flat rate shipping to the United States and select international countries. If your country is not on the list please reach out to me via the contact page and I can manually calculate shipping for you.
