CPS2 Multi Kit Key Writing Quick Solder Board

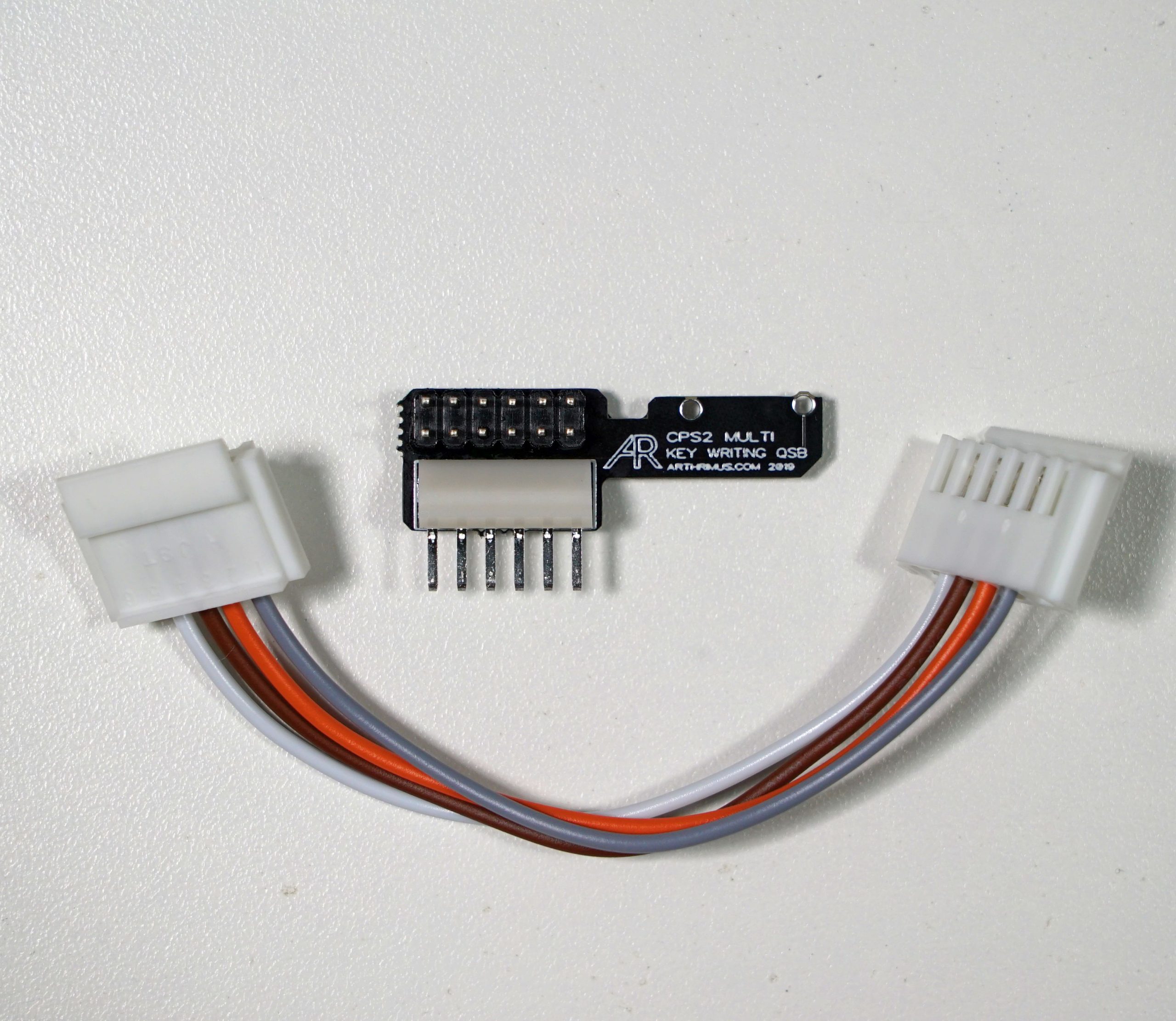

CPS2 Multi Kit Key Writing Quick Solder Board - Image 2
CPS2 Multi Kit Key Writing Quick Solder Board - Image 3

CPS2 Multi Kit Key Writing Quick Solder Board

SKU: CPS2KW01 Category: Retired Products
Notify me when this product is back in stock.
Share This :
  • Description
  • Additional information
  • Reviews (0)

Description

This Product Has Been Retired. I Have No Plans To Make More In The Future. This Page Remains Only For Posterity.



CPS2 Multi Kit Key Writing Quick Solder Board

The CPS2 Multi Kit Key Writing QSB is a safer and more convenient way to install key writing wires to your Darksoft CPS2 Multi Kit. It uses the J4 hole pattern on the multi kit PCB as an anchor point for a 6 pin JST NH connector identical to the CN9 connector on the CPS2 B board that the key writing wires connect to. This allows easy installation and removal of the key writing wires with no risk of damaging the sensitive pads on the multi kit.

Included Items

  • 1 CPS2 Key Writing QSB
  • 1 Key Writing Jumper Cable.



Key Writing Jumper Cable Selection

There are 2 cable types, please select the appropriate cable for your CPS2 B board.

  • Short Cable (CN9) is for use with the following B board revisions:  93646B-5, 93646B-6, 93646B-7
  • Long Cable (CN2) is for use with the following B board revisions:  93646B-3, 93646B-4

Installation Instructions

Here is a video showing how to install the Key Writing QSB on a CPS2 Multi.

CN2 Pinout:
DATA: JST NH PIN #5→ CN2 A32
SETUP: JST NH PIN #4→ CN2 A30
CLOCK: JST NH PIN #3→ CN2 A31
SETUP2: JST NH PIN #2→ CN2 A29
How this store works:

Processing time for orders is between 1 and 5 days. I assemble all of these boards by hand. When a product is listed in stock this means that I have all of the components to build the board, but it does not necessarily mean that the boards are already assembled. If I have boards ready at the time of your order then processing and shipping your item should only take 1 day. If I have to assemble one or more products in your order, processing and shipping could take up to 5 days. I appreciate your patience, I’m a one man show over here.

IMPORTANT SHIPPING INFORMATION

I have implemented flat rate shipping to the United States and select international countries. If your country is not on the list please reach out to me via the contact page and I can manually calculate shipping for you.

Additional information

Weight 1 oz
Key Writing Cable Selection

Short Cable (CN9), Long Cable (CN2)

Reviews

There are no reviews yet.
