Borti4938’s SNES RGB Bypass V4.1a with S-video and C-sync

Description

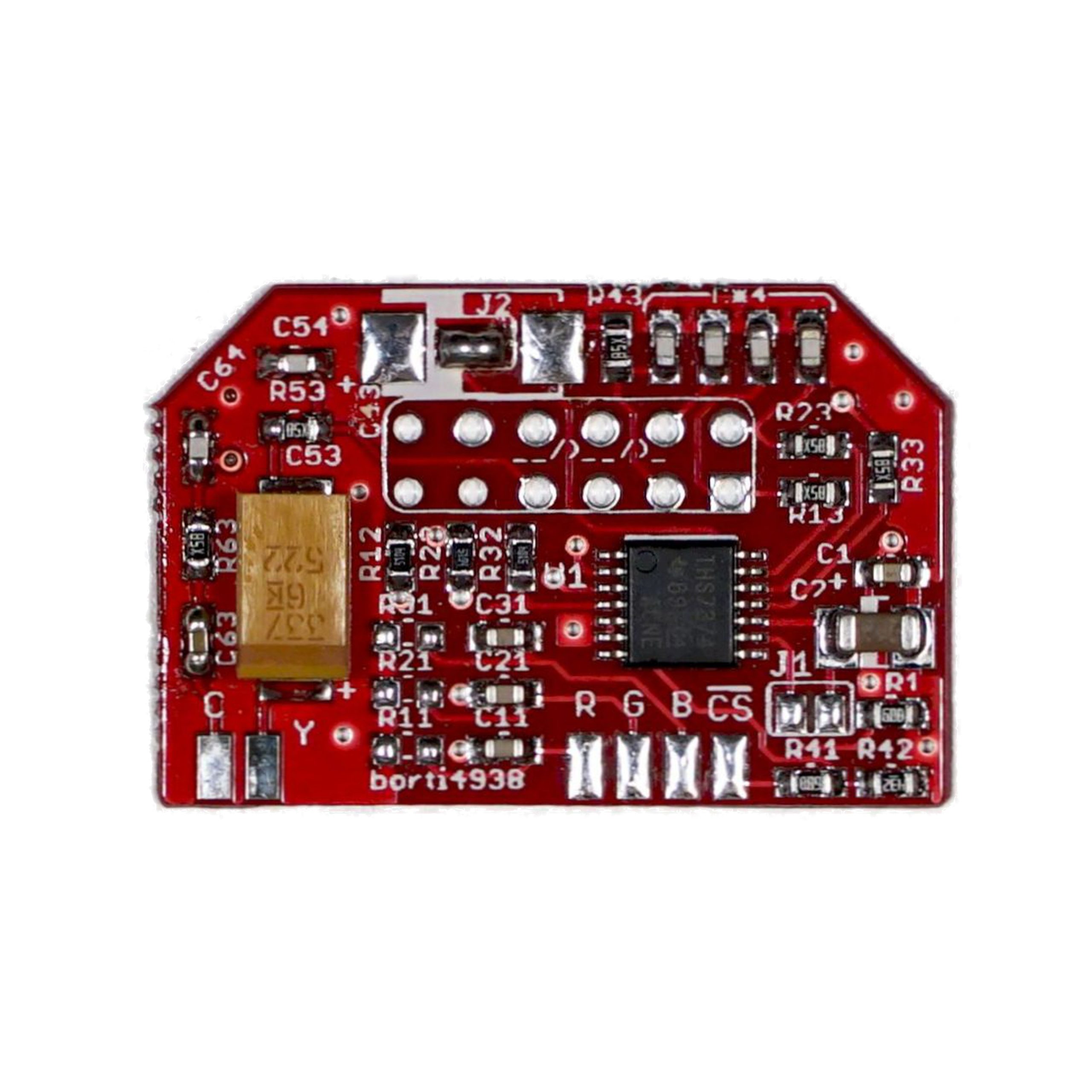

SNES RGB Bypass 4.1a by Borti4938

The THS7374 based SNES RGB Bypass circuit designed by Borti4938 provides exceptional RGB video output for SNES Mini and 1CHIP consoles. It fixes problems like the dreaded “vertical bar” that can be seen in dark backgrounds, and provides a sharper picture than the standard S-RGB encoder that Nintendo used in the SNES. If your setup doesn’t require dejitter functionality, this mod provides the same excellent output quality of my SNES RGB Bypass+Dejitter board at a lower cost.

Features of the mod:

• High quality RGB Bypass based on the design by Borti4938.
• S-Video restore for SNES Mini/jr.
• TTL C-sync restore for Mini/Jr and 1CHIP-03 models.
• Low pass filter that can be toggled on or off using J1

Purchasing Options:

If you plan to install the mod yourself simply select Self Installation in the drop down options, If you wish to send your console in for modding service, select Professional Installation and I will provide shipping instructions after checkout.
